1.Uses:Mainly for building construction,packing and furniture.
2.Material:Q195 or 235
3.Surface treatment:Countersunk,Checkered head,Diamond Point, smooth handle
4.Surface treatment：Polished,galvanized,Mechanical galvanized,Hot dip galvanized
5.Length:1/2″-10″,BWG4-20 for all kinds of round Nails.
6.Packaging: small plastic bag and small box of 1kg,2.5kg,3kg,5kg/In cartonor bag of 25kgs/20kgs/50lbs/Loading qty 22-28tons/Shipping container

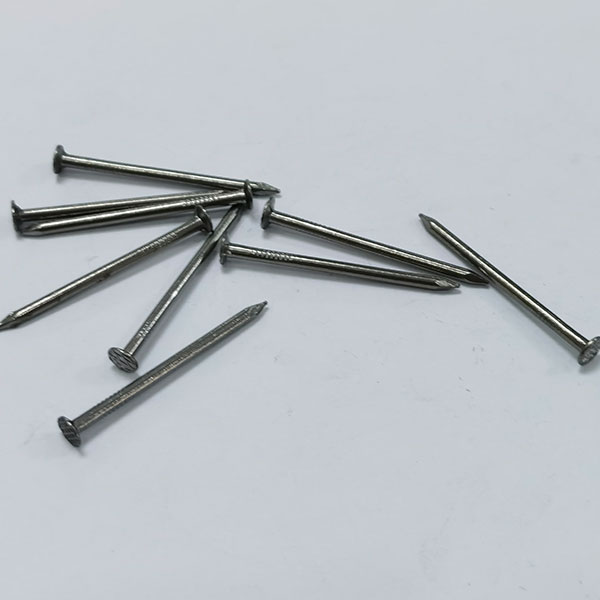

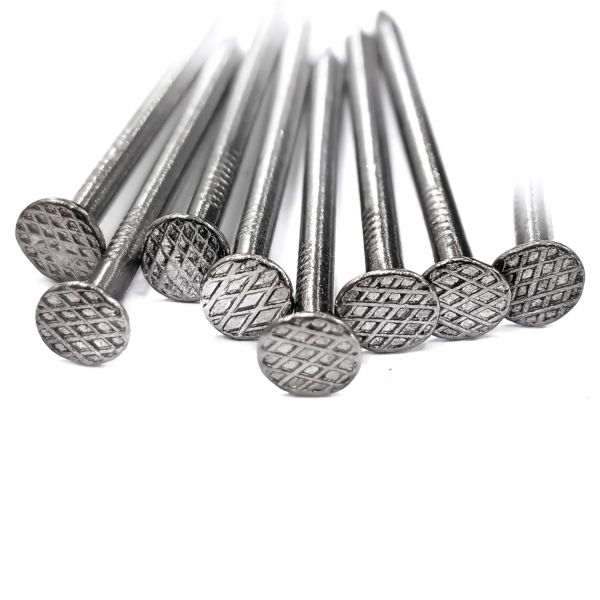

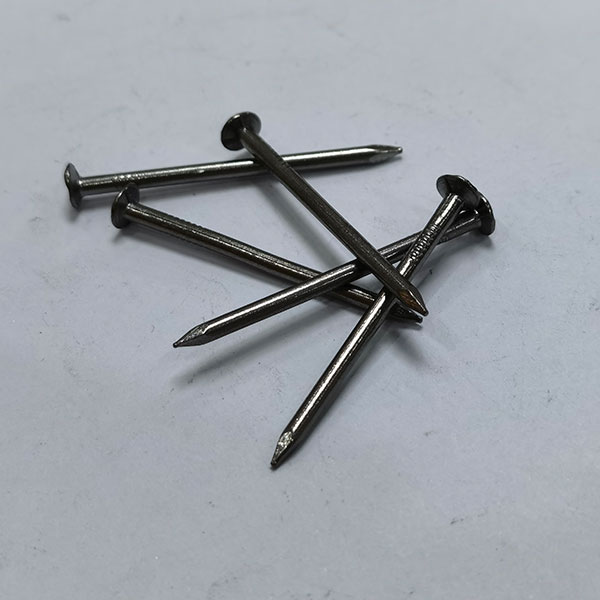

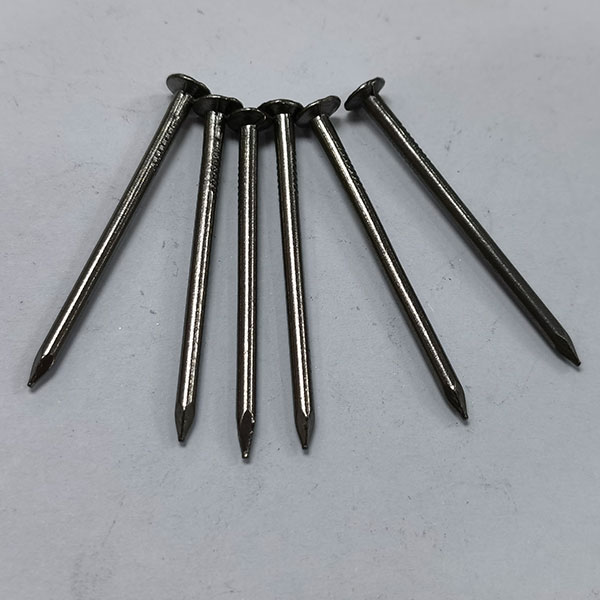

Polished round head smooth handle common iron nails( BWG13X1-1/2” 2.4X38.1MM) are mainly for building construction,packing and furniture.They have smooth handles, checkered hats, countersunk heads, and Diamond tip.Q195 low carbon steel is used as raw material. This nail is polished.According to customer needs can also do electric galvanizing, mechanical galvanizing, hot dip galvanizing and other surface treatment.It also supports custom packaging, such as boxes, plastic bags and cartons.Please contact us if necessary.
BWG or weight table
| Size | Length(mm) | Diameter(mm) | KG/1000PCS | PCS/1KG | |
| Inch | BWG | ||||
| 3/8 | 20 | 9.52 | 0.89 | 0.046 | 21730 |
| 1/2 | 19 | 12.7 | 1.07 | 0.088 | 11360 |
| 5/8 | 18 | 15.87 | 1.25 | 0.152 | 6580 |
| 3/4 | 17 | 19.05 | 1.47 | 0.25 | 4000 |
| 1 | 16 | 25.4 | 1.65 | 0.42 | 2380 |
| 1-1/4 | 15 | 31.75 | 1.83 | 0.65 | 1540 |
| 1-1/2 | 14 | 38.1 | 2.11 | 1.03 | 971 |
| 1-3/4 | 13 | 44.45 | 2.41 | 1.57 | 637 |
| 2 | 12 | 50.8 | 2.77 | 2.37 | 422 |
| 2-1/2 | 11 | 63.5 | 3.05 | 3.58 | 279 |
| 3 | 10 | 76.2 | 3.4 | 5.35 | 187 |
| 3-1/2 | 9 | 88.9 | 3.76 | 7.65 | 131 |
| 4 | 8 | 101.66 | 4.19 | 10.82 | 92.4 |
| 4-1/2 | 7 | 114.3 | 4.57 | 14.49 | 69 |
| 5 | 6 | 127 | 5.16 | 20.53 | 48.7 |
| 6 | 5 | 152.4 | 5.59 | 28.93 | 34.5 |
| 7 | 4 | 177.8 | 6.05 | 40.32 | 24.8 |
Length – diameter table
| Length | gauge | |
| inches | mm | B.W.G |
| 3/8 | 9.525 | 19/20/ |
| 1/2 | 12.700 | 20/19/18 |
| 5/8 | 15.875 | 19/18/17 |
| 3/4 | 19.050 | 19/18/17 |
| 7/8 | 22.225 | 18/17 |
| 1 | 25.400 | 17/16/15/14/ |
| 1-1/4 | 31.749 | 16/15/14/ |
| 1-1/2 | 38.099 | 15/14/13 |
| 1-3/4 | 44.440 | 14/13/ |
| 2 | 50.800 | 14/13/12/11/10 |
| 2-1/2 | 63.499 | 13/12/11/10 |
| 3 | 76.200 | 12/11/10/9/8 |
| 3-1/2 | 88.900 | 11/10/9/8/7 |
| 4 | 101.600 | 9/8/7/6/5 |
| 4-1/2 | 114.300 | 7/6/5 |
| 5 | 127.000 | 6/5/4 |
| 6 | 152.400 | 6/5 |
| 7 | 177.800 | 5/4 |
