Mechanical galvanized round head smooth handle common iron nail BWG9X3” 3.76X76.2MM

Brand: TJNAILS
Type: BWG9X3” 3.76X76.2MM
country of origin: TIANJIN
MOQ: 5 tons
Payment Method: L/C T/T
Supply Capacity: 2000 TONS PER MONTH
Delivery period: 15-25 days

Categories :
Contact Now
  • Description

1.Uses:Mainly for building construction,packing and furniture.
2.Material:Q195 or 235
3.Surface treatment:Countersunk,Checkered head,Diamond Point, smooth handle
4.Surface treatment：Polished,galvanized,Mechanical galvanized,Hot dip galvanized
5.Length:1/2″-10″,BWG4-20 for all kinds of round Nails.
6.Packaging: small plastic bag and small box of 1kg,2.5kg,3kg,5kg/In cartonor bag of 25kgs/20kgs/50lbs/Loading qty 22-28tons/Shipping container

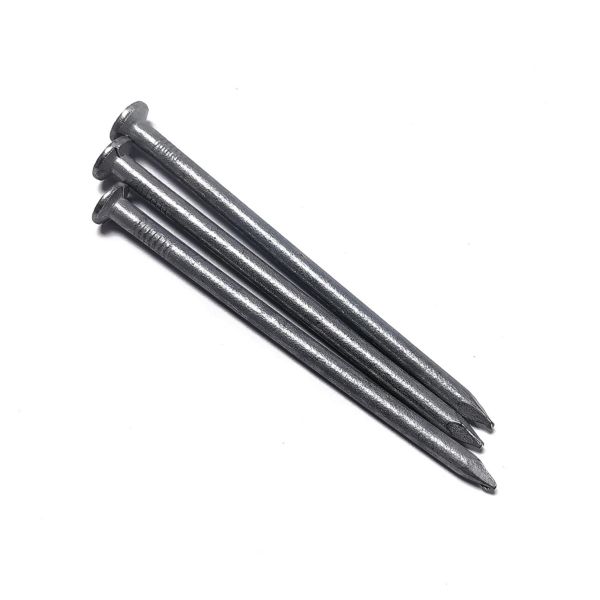

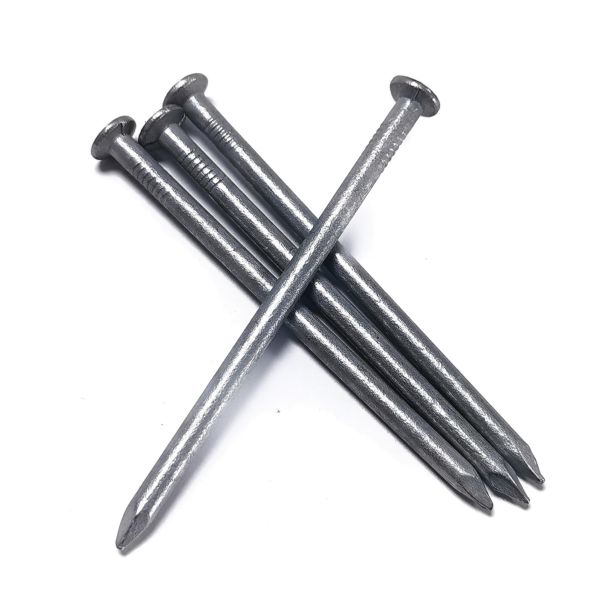

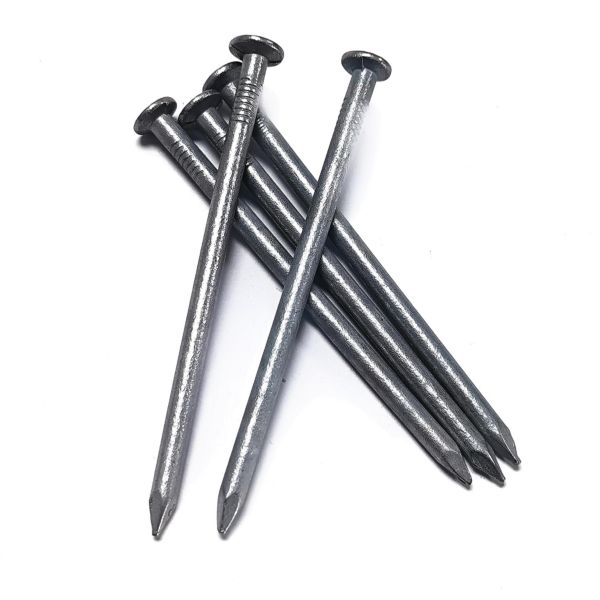

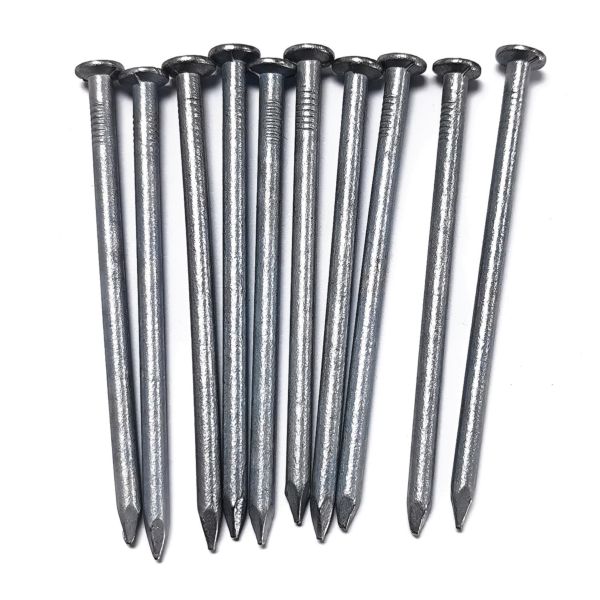

Mechanical galvanized round head smooth handle common iron nails(BWG9X3” 3.76X76.2MM) are mainly for building construction,packing and furniture.They have smooth handles, checkered hats, countersunk heads, and Diamond tip.Q195 low carbon steel is used as raw material. This nail is Mechanical galvanized.According to customer needs can also do polished, galvanizing, hot dip galvanizing and other surface treatment.It also supports custom packaging, such as boxes, plastic bags and cartons.Please contact us if necessary.

BWG or weight table

Size Length(mm) Diameter(mm) KG/1000PCS PCS/1KG
Inch BWG
3/8 20 9.52 0.89 0.046 21730
1/2 19 12.7 1.07 0.088 11360
5/8 18 15.87 1.25 0.152 6580
3/4 17 19.05 1.47 0.25 4000
1 16 25.4 1.65 0.42 2380
1-1/4 15 31.75 1.83 0.65 1540
1-1/2 14 38.1 2.11 1.03 971
1-3/4 13 44.45 2.41 1.57 637
2 12 50.8 2.77 2.37 422
2-1/2 11 63.5 3.05 3.58 279
3 10 76.2 3.4 5.35 187
3-1/2 9 88.9 3.76 7.65 131
4 8 101.66 4.19 10.82 92.4
4-1/2 7 114.3 4.57 14.49 69
5 6 127 5.16 20.53 48.7
6 5 152.4 5.59 28.93 34.5
7 4 177.8 6.05 40.32 24.8

Length – diameter table

Length gauge
inches mm B.W.G
3/8 9.525 19/20/
1/2 12.700 20/19/18
5/8 15.875 19/18/17
3/4 19.050 19/18/17
7/8 22.225 18/17
1 25.400 17/16/15/14/
1-1/4 31.749 16/15/14/
1-1/2 38.099 15/14/13
1-3/4 44.440 14/13/
2 50.800 14/13/12/11/10
2-1/2 63.499 13/12/11/10
3 76.200 12/11/10/9/8
3-1/2 88.900 11/10/9/8/7
4 101.600 9/8/7/6/5
4-1/2 114.300 7/6/5
5 127.000 6/5/4
6 152.400 6/5
7 177.800 5/4
